Metallurgical Sample Preparation Machine

METACUT Series

Abrasive Cutting Machine

Microprocessor controlled, front panel with touch-pad controls, compact powerful 3 kW motor, electronic brake system, cutting capacity up to 115/90 mm solid stock, for cut-off wheels up to Ø300/250 mm, twin T-slotted  clamping table 255x250 mm made of stainless steel, bottom part as rugged alloy base casting, ABS protective hood, Ready for operation. Without clamping devices, without recirculation cooling tank. 400 V, 3 phase, 50 Hz.
Includes a standard set of cutting consumables composed of;
*1 pack of medium type 10 cut-off wheels 250 mm dia.
*1 pack of medium type 10 cut-off wheels 300 mm dia.
*5 lt of METCOOL cooling fluid



METACUT 302





Abrasive Cutting Machine

Microprocessor controlled, front panel with touch-pad controls, compact powerful 3 kW motor, electronic brake system, cutting capacity up to 115/90 mm solid stock, for cut-off wheels up to Ø300/250 mm, twin T-slotted  clamping table 255x250 mm made of stainless steel, bottom part as rugged alloy base casting, ABS protective hood, Ready for operation. Without clamping devices, without recirculation cooling tank. 400 V, 3 phase, 50 Hz.
Includes a standard set of cutting consumables composed of;
*1 pack of medium type 10 cut-off wheels 250 mm dia.
*1 pack of medium type 10 cut-off wheels 300 mm dia.
*5 lt of METCOOL cooling fluid

Click to download the catalog



 SERVOCUT Series



SERVOCUT is the perfect choice for a wide range of materials and for heavy duty cutting applications. It combines the two well proven cutting techniques into the same machine:



Chop cutting: The specimen is clamped and the cut-off wheel approaches the specimen via a rocker arm.

Table-feed cutting: Feeding the clamped specimen into a rotating cut-off wheel using a slotted feed table.



The workpiece to be cut can be accurately positioned in 3 axis which is displayed digitally on the front panel.

SERVOCUT is available in three main sizes and in automatic and/or manual versions:



SERVOCUT 302: Medium Size (cut-off wheel dia.of 250/300 mm)

SERVOCUT 402: Large Size (cut-off wheel dia.of 350/400 mm)

SERVOCUT 502: Very Large Size (cut-off wheel dia.of 450/500 mm)



All Servocut series have variable rotational speed option for optimum cutting, and cutting different various of materials without changing cut off wheel.

Available with optional Cutting Methods including Diagonal Cut, Step Cut and Segment Cut.



Diagonal Cut: for increased cutting capacity

Step Cut: for extra hard materials

Segment Cut: for difficult workpieces.



Servocut Series includes a standard set of cutting consumables composed of;  An assortement of 20 cut-off wheels and 5 lt of Metcool cooling fluid.



SERVOCUT 302 MM

With hand wheel driven chop cutting and table-feed cutting systems, manual positioning of the specimen in X and Y axis (X-axis for plane parallel cutting is optional),  manual positioning of the cutting wheel in Z-axis, powerful 4 kW cutting motor, 2850 rpm cutting speed, with electronic brake system, cutting  capacity up to 110/90 mm solid stock, with cut-off wheels up to ø300/250mm, twin T-slotted clamping table made of stainless steel,  bottom part as rugged alloy base casting, extraordinary access for easy handling with sliding door and side openings, Ready  for operation. Without clamping devices, without recirculation cooling tank.

Includes a standard set of cutting consumables composed of;
*An assortment of 20 cut-off wheels with 300 mm dia.
*5 lt of Metcool cooling fluid.
400 V, 3 phase, 50/60 Hz

Click to download the catalog.



SERVOCUT 301 MA



Programmable with 7" HMI touch screen control, with Siemens PLC control unit, with hand wheel driven chop cutting and  automatic driven table-feed cutting  systems,  with various cutting methods, programmable with colored LCD display of cutting parameters, accurate and motorized positioning of the specimen in X  and Y axis (X-axis for plane parallel cutting is optional), ergonomic joystick with adjustable speed control, integrated feed path control, power dependent adjustable feed rate, variable cutting force, pulse cutting mode, bar graph overload display, powerful 4 kW cutting motor, with variable cutting speed 600-4000 rpm, with electronic brake system, cutting capacity up to 110/90 mm solid stock, with cut-off wheels up to ø300/250mm, twin T-slotted table(Y-direction only) made of stainless steel, bottom part as rugged alloy base casting, extraordinary access for easy handling with sliding door and side openings, with extra advanced cutting methods: "Rapid Pulse Cutting, Instafeed Cutting,  Automatic Chop Cutting, Automatic Table Feed Cutting, Joystick Cutting"  Ready  for operation. Without clamping devices, without recirculation cooling tank.
Includes a standard set of cutting consumables composed of;
*An assortment of 20 cut-off wheels with 300 mm dia.
*5 lt of Metcool cooling fluid.
400 V, 3 phase, 50/60 Hz.



Click to download the catalog.



SERVOCUT 302 AA



Programmable with 7" HMI touch screen control, with Siemens PLC control unit, with automatic chop cutting and automatic table-feed cutting  systems,  with various cutting methods, programmable with colored LCD display of cutting parameters, accurate and motorized positioning of the specimen in X - Y and Z axis (X-axis for plane parallel cutting is optional), ergonomic joystick with adjustable speed control, integrated feed path control, power dependent adjustable feed rate, variable cutting force, pulse cutting mode, bar graph overload display, powerful 4 kW cutting motor, with variable cutting speed 600-4000 rpm, with electronic brake system, cutting capacity up to 110/90 mm solid stock, with cut-off wheels up to ø300/250mm, twin T-slotted table(Y-direction only) made of stainless steel, bottom part as rugged alloy base casting, extraordinary access for easy handling with sliding door and side openings,
with extra advanced cutting methods: "Rapid Pulse Cutting, Table Oscillation Cutting, Instafeed Cutting, Automatic Chop Cutting, Automatic Table Feed Cutting, Joystick Cutting" Ready  for operation.
Without clamping devices, without recirculation cooling tank.
Includes a standard set of cutting consumables composed of;
*An assortment of 20 cut-off wheels with 300 mm dia.
*5 lt of Metcool cooling fluid.
400 V, 3 phase, 50/60 Hz.

Click to download the catalog.



SERVOCUT 402 MM



With hand wheel driven chop cutting and table-feed cutting systems, manual positioning of the specimen in X and Y axis (X-axis for plane parallel cutting is optional),  manual positioning of the cutting wheel in Z-axis, powerful 7.5 kW cutting motor, 2200 rpm cutting speed, with electronic brake system, cutting  capacity up to 150/130 mm solid stock, with cut-off wheels up to Ø400/350mm, twin T-slotted clamping table made of stainless steel,  bottom part as rugged alloy base casting, extraordinary access for easy handling with sliding door and side openings, Ready  for operation. Without clamping devices, without recirculation cooling tank.
Includes a standard set of cutting consumables composed of;
*An assortment of 20 cut-off wheels with 400 mm dia.
*5 lt of Metcool cooling fluid.
400 V, 3 phase, 50/60 Hz

Click to download the catalog.



SERVOCUT 402 MA



Programmable with 7" HMI touch screen control, with Siemens PLC control unit, with hand wheel driven chop cutting and automatic driven table-feed cutting  systems,  with various cutting methods, programmable with colored LCD display of cutting parameters, accurate and motorized positioning of the specimen in X  and Y axis (X-axis for plane parallel cutting is optional), ergonomic joystick with adjustable speed control, integrated feed path control, power dependent adjustable feed rate, variable cutting force, pulse cutting mode, bar graph overload display, powerful 7.5 kW cutting motor, with unique belt protection system, with variable cutting speed 600-2400 rpm, with electronic brake system,
cutting capacity up to 150/130 mm solid stock, with cut-off wheels up to Ø400/350mm, twin T-slotted table(Y-direction only) made of stainless steel, bottom part as rugged alloy base casting, extraordinary access for easy handling with sliding door and side openings, with extra advanced cutting methods:
"Rapid Pulse Cutting, Instafeed Cutting, Automatic Chop Cutting, Automatic Table Feed Cutting, Joystick Cutting"
Ready  for operation. Without clamping devices, without recirculation cooling tank.
Includes a standard set of cutting consumables composed of;
*An assortment of 20 cut-off wheels with 400 mm dia.
*5 lt of Metcool cooling fluid.
400 V, 3 phase, 50/60 Hz.

Click to download the catalog.



SERVOCUT 402 AA



Automatic Abrasive Cutting Machine

Programmable with 7" HMI touch screen control, with Siemens PLC control unit, with automatic chop cutting and automatic table-feed cutting  systems,  with various cutting methods, programmable with colored LCD display of cutting parameters, accurate and motorized positioning of the specimen in X - Y and Z axis (X-axis for plane parallel cutting is optional), ergonomic joystick with adjustable speed control, integrated feed path control, power dependent adjustable feed rate, variable cutting force, pulse cutting mode, bar graph overload display, powerful 7.5 kW cutting motor, with unique belt protection system, with variable cutting speed 600-2400 rpm, with electronic brake system, cutting capacity up to 150/130 mm solid stock, with cut-off wheels up to Ø400/350mm, twin T-slotted table(Y-direction only) made of stainless steel, bottom part as rugged alloy base casting, extraordinary access for easy handling with sliding door and side openings, with extra advanced cutting methods: "Rapid Pulse Cutting, Table Oscillation Cutting, Instafeed Cutting, Automatic Chop Cutting, Automatic Table Feed Cutting, Joystick Cutting" Ready  for operation. Without clamping devices, without recirculation cooling tank.

Includes a standard set of cutting consumables composed of;
*An assortment of 20 cut-off wheels with 400 mm dia.
*5 lt of Metcool cooling fluid.
400 V, 3 phase, 50/60 Hz.



Click to download the catalog.



SERVOCUT 502

Automatic Abrasive Cutting Machine

Programmable with 7" HMI touch screen control, with Siemens PLC control unit, with automatic chop cutting and automatic table feed cutting systems, with various cutting methods, programmable with colored LCD display of cutting parameters, accurate and motorized positioning of the specimen in X - Y and Z axis (X-axis for plane parallel cutting is optional), ergonomic joystick with adjustable speed control, integrated feed path control, power dependent adjustable feedrate, variable cutting force, rapid pulse cutting mode, bar graph overload display, powerful 11 kW cutting motor, with unique belt protection system, with variable cutting speed 600-2400 rpm, with electronic brake system, cutting capacity up to 180/146 mm solid stock, with cut-off wheels up to Ø500/432 mm, twin T-slotted table
(Y-direction only) made of stainless steel, bottom part as rugged alloy base casting, extraordinary access for easy handling with sliding door and side openings, with extra advanced cutting methods:
"Rapid Pulse Cutting, Table Oscillation Cutting, Instafeed Cutting, Automatic Chop Cutting, Automatic Table Feed Cutting, Joystick Cutting" Ready  for operation. Without clamping devices, without recirculation cooling tank.
Includes a standard set of cutting consumables composed of;
*An assortment of 20 cut-off wheels with 432 mm dia.
*5 lt of METCOOL cooling fluid.
400 V, 3 phase, 50/60 Hz.

Click to download catalog.




SERVOCUT 602



Multi-Target Automatic Abrasive Cutting Machine

For cutting large and multiple specimens, ability to work with cut-off wheels up to Ø600 mm, cutting capacity up to Ø225 mm solid stock 100Hx500D mm for rectangular specimens, powerful 15 kW cutting motor with unique belt protection system, with electronic brake system, with variable cut-off wheel speed 600-2400 RPM, ability to set fixed peripheral speed of cut-off wheel from 20 to 60 m/s. overload display and protection system, accurate Servo motor driven table and wheel movement for precise and fast positioning, joystick with adjustable speed control, stainless steel table (772x710mm) with 560 mm
Y-axis movement range, Programmable with 10" HMI touch screen control, Siemens PLC control unit, automatic cut-off wheel diameter measurement and automatic starting position adjustment according to cut-off wheel wear, Positioning System allowing clamping several components simultaneously,
with automatic chop cutting and automatic table feed cutting  systems, with automatic cutting feedrate control, with extra advanced cutting methods: "Rapid Pulse Cutting, Table Oscillation Cutting, Instafeed Cutting Automatic Chop Cutting, Automatic Table Feed Cutting, Joystick Cutting" Powerful LED illumination, robust construction. Ready for operation.  Without clamping devices, without recirculation cooling tank.
Includes a standard set of cutting consumables composed of;
*An assortment of 10 cut-off wheels with 600 mm dia.
*5 lt of METCOOL cooling fluid.
400 V, 3 phase, 50/60 Hz.








Precision Cutting

 Precision cutting is used for precise and deformation-free cutting of  “Metals, Ceramics, Electronic Components, Crystals, Composites, Biomaterials, Sintered Carbides, Minerals, etc.

MICRACUT  Precision Cutter has its place in virtually any metallurgical, geological, electronics, research, biomedical or industrial laboratory. The applications are endless.

MICRACUT Series



MICRACUT family of precision cutters are available in 2 different versions:



MICRACUT 152  Precision Cutter, Max. disc size 150 mm, Speed range 0-1000 rpm

MICRACUT 202  High Speed Table Feed Precision Cutter Max. disc size 200 mm, Speed range 500-5000rpm



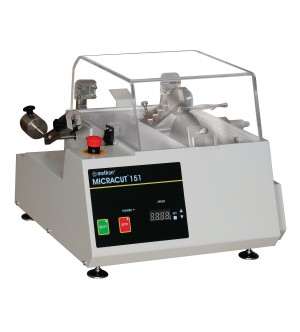

MICRACUT 152



Precision Cutter

Modern touch-pad controls with digital display, ergonomic turn knob for fast and easy setting of parameters, 100 W powerful DC cutting motor, variable speed 0-1500 rpm, with digital micrometer cross feed for specimen positioning, counterbalanced sliding weight system, removable cooling unit, automatic cut-off switch, transparent protection hood with magnetic safety switch, for cutting discs of up to 175 mm diameter. Ready for operation. Without specimen vises. 230 V, 50 Hz, AC.
Includes a standard set of cutting consumables composed of;
*1 pc. Diamond cutting Disc 150 mm dia.
*1 lt of METCOOL II cooling fluid.


Click to download catalog



MICRACUT 202



Automatic High Speed Precision Cutter

Programmable with 7" HMI touch screen control, with Siemens PLC control unit, with automatic  table feed cutting system, programmable with colored LCD display of cutting parameters, accurate and motorized positioning of the specimen in X - Y and Z axis with digital readout on the LCD (X-axis for plane parallel cutting is optional), ergonomic joystick with adjustable  speed control, integrated feed path control, power dependent adjustable feedrate, variable cutting force, rapid pulse cutting mode, bar graph overload display, powerful 1.1 kW cutting motor, with variable cutting speed 100-5000 rpm,
with electronic brake system, cutting capacity  up to 75 mm solid stock, with cut-off wheels up to Ø200 mm, twin T-slotted table (Y-direction only) made of stainless steel, bottom part as rugged alloy base casting, extraordinary access for easy handling with sliding door and side openings, ability to mount diamond cup grinding wheel for thin section, with built-in recirculation cooling unit, with extra advanced cutting methods:  "Rapid Pulse Cutting, Instafeed Cutting, Automatic Table Feed Cutting" Ready  for operation. 230 V, 50/60 Hz, AC.
Includes a standard set of cutting consumables composed of;
*1 pc. Diamond cutting Disc 200 mm dia.
*10 abrasive thin cut-off wheels 200 mm dia.
*1 lt of Metcool II cooling fluid.


Click to download the catalog.







Hot Mounting

After cutting the specimen, the next step is mounting. The aim of mounting is to handle small or odd shaped specimens and to protect fragile materials, thin layers or coating during preparation as well as to provide good edge retention. Mounting produces specimens with uniform size so that it is easier to handle in automatic holders for further preparation steps.

Basically, two metods are available:
Hot Mounting

Cold Mounting

In hot mounting, the specimen is mounted under heat and pressure with a hot mounting press.

Cold mounting is preferred for samples which are sensitive to damage from heat and pressure (like coatings, PCB, etc.) Cold mounting resins are easy to use and require mixing which is then poured into a mould and allowed to set.

ECOPRESS 52



Automatic Mounting Press

Fully automatic operation with microprocessor controls, electro hydraulic pressure (requires no air),
with touch pad front panel controls and digital display of; heating time, moulding temperature, cooling temperature, ram up/down, auto/manual cooling, cycle start/stop. Last parameter settings retained
in the memory, with ergonomic turn knob for fast and easy setting of parameters, with direct reading pressure gauge, moulding pressure up to 300 bar, temperature up to 2000C, operation time up to 35:00
minutes, short cycle time, thermostatically controlled heating power of 1650W, automatic cooling cycle, programmable slow cooling feature, stand-by temperature, selectable mould sizes from 25 mm to 50 mm, easy to close bayonet closure, audible warning  signal, ready for operation. 230 V, 1-phase, 50/60 Hz. Mould assemblies are ordered separately.
Includes a standard set of mounting consumables composed of
3 different hot mounting compounds; 1 kg of each and a total of 3 kg.


Click to download the catalog.



ECOPRESS 102



Programmable Automatic Mounting Press

7" HMI touch screen control, with Siemens PLC control unit, programmable with colored LCD display, program based mounting sequences, electro hydraulic pressure (requires no air), pressure up to 300 bar, temperature up to 2000C, operation time up to 35:00 minutes, short cycle time, thermostatically controlled heating power of 1650W, automatic cooling cycle with three modes of cooling rates(standard cooling, slow cooling and based on time), programmable preheating and preloading, stand-by temperature, selectable mould sizes from 25 mm to 50 mm, easy to close bayonet closure, audible warning  signal, ready for operation. 230 V, 1-phase, 50/60 Hz. Mould assemblies are ordered separately.
Includes a standard set of mounting consumables composed of
3 different hot mounting compounds; 1 kg of each and a total of 3 kg.

Click to download the catalog.

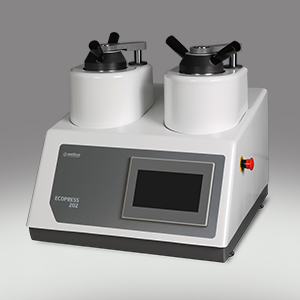

ECOPRESS 202



Programmable Automatic Mounting Press with dual cylinders

7" HMI touch screen control, with Siemens PLC control unit, programmable with colored LCD display, program based mounting sequences, electro hydraulic pressure (requires no air), pressure up to 300 bar,  temperature up to 2000C, operation time up to 35:00 minutes, short cycle time, thermostatically controlled heating power of 2X1650W, automatic cooling cycle with three modes of cooling rates( standard cooling, slow cooling and based on time), programmable preheating and preloading, stand-by temperature, selectable mould sizes from 25 mm to 50 mm, easy to close bayonet closure, audible  warning  signal, ready for operation. 230 V, 1-phase, 50/60 Hz. Mould assemblies are ordered separately.
Includes a standard set of mounting consumables composed of
3 different hot mounting compounds; 1 kg of each and a total of 3 kg.



Click to download the catalog.



VACUMET 52



Self-contained vacuum impregnation unit

with built-in pneumatic vacuum system of -0.65 bar, vacuum gage and one set of supplies for casting epoxy resins.
Includes a standard set of mounting consumables composed of
* 10 cups, 10 silicon tubes, 10 wooden mixing spoon  2 scale tubes.







Grinding & Polishing



In order to obtain a highly reflective surface that is free from scratches and deformation, the specimens must be carefully grinded and polished before they can be examined under the microscope. Metkon offers high quality instruments and consumables for achieving this goal.



FORCIPOL



FORCIPOL Series of instruments are available as Single wheel and Dual wheel Units (200/250/300 mm wheel size).   Both single or double wheel versions are available with constant, dual or  infinitely  variable rotating speeds with digital display. This allows the setting of the optimum speed for each individual preparation process.

When the number of specimens to be prepared increases, FORCIPOL instruments can be fitted with FORCIMAT automatic head for automation. FORCIMAT automatic head provides high rate of sample preparation and frees the operator from the grinding and polishing procedures.

All FORCIPOL series includes a standard set of grinding & polishing consumables; an assortment of 100 grinding papers(various grits), 5 polishing cloths, Diamond suspensions and lubricant





Grinding and Polishing Machine. Single wheel, suitable for 200 mm and 250 mm wheel diameter, standard interface for FORCIMAT automatic specimen mover, fixed speed of 300 rpm, 1/2 HP motor with overload protection.



Click to download catalog.



FORCIPOL 1V



Grinding and Polishing Machine Single wheel, suitable for 200 mm and  250 mm wheel size, standard interface for FORCIMAT automatic specimen mover, variable speed between 50-600 rpm , with digital display, 3/4 HP motor with overload protection, .



Click to download catalog.





FORCIPOL 300 - 1V



Grinding and Polishing Machine. Single wheel,suitable for 300mm wheel size, standard interface for FORCIMAT automatic specimen mover, variable speed between 50-600rpm, with digital display, 1HP motor with overload protection.



Click to download catalog.







FORCIMAT



Automatic Specimen Mover microprocessor controlled, pneumatically adjustable individual force   loading system, upto 6 specimens, 90 Watt DC motor, front panel with touch-pad controls, audible warning signal, communication capability with all FORCIPOL machines, steel mounting column, and with LUBOMATIC automatic and exchangable drip lubricator.



Click to download catalog.



FORCIPOL 2V



Grinding and Polishing Machine. Double wheel,suitable for 200mm and 250 mm wheel size, standard interface for FORCIMAT automatic specimen mover variable speed between 50-600rpm, with digital display, 3/4 HP motor with overload protection.



Click to download catalog.
