Floor model 125kN Floor model 150 to 400kN Floor model 600 to 2500kN

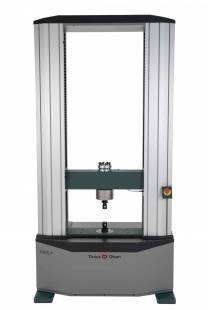

LFM Electromechanical Floor Standing Machines up to 125 kN
This Series offers ultra-high flexibility and modularity making this model the perfect platform for a wide spectrum of users and applications
ranging from demanding research projects to high-volume quality control.
This model line combines high-performance, high accuracy and highest degree of flexibility.
Thus, this model represents the suitable Test Systems for researchers and quality control managers world-wide from different industries.
The flexibility and versatility makes this system a perfect solution for testing alloys, composites, ceramics, polymers, geotextiles and many other materials including testing under low-, or high temperatures or other simulated environmental conditions.
Key Features
Two Extruded aluminium profiles with T-slots allow the easy mounting of any accessories
In the T-slot profiles integrated are the backlash-free ball screw assemblies with additional columns providing high load capacity, high positioning accuracy and repeatability
Rigid machine frame providing superior axial and lateral stiffness and guarantees robust, durable and long-term operation
One test area with ergonomic working height (additional second upper test space available)
Mobile traverse (crosshead) controlled by a brush-less high responsive, maintenance-free AC servomotor providing faster starts and stops, best control, and highest accuracy at a extremely low noise level
AC servomotor provides continuous high test speed up to nominal force for continuously operation
Additional two (2) chromium plated guiding columns for increased lateral stiffness
Column protection over total traverse stroke
Precision strain gauge load cell mounted on crosshead
Standardized mounting stud (male) Ø40 mm to mount grips
Digital movable crosshead encoder
Adjustable stops in both (UP/DOWN) directions for the best protection of operator, test sample and machine
Emergency stop direct at the machine
Adjustable machine feet to level the testing machine
The machine is free-standing on shock absorbers, requiring no special foundations
Optional additional 2nd test spaces for increased flexibility and efficiency

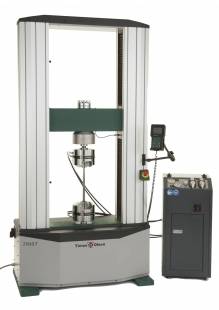

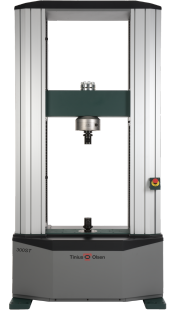

LFM Electromechanical Floor Standing Machines 150 to 400 kN
These floor-standing state-of-the-art testing systems using the latest technology, as all of our testing machines, providing uncompromising
quality and therefore representing a range of accurate and reliable testing machines.
Typical application for this medium load, rigid 4-column systems, include testing of metals & alloys, fasteners, composite materials, forgings, joints, geotextiles or cement. The ergonomic design and rigid construction render this system the perfect solution for highly efficient testing.
Key Features
Rigid machine frame with high stiffness providing superior axial and lateral stiffness and guarantees robust, durable and long-term operation
Single test area with ergonomic working height
Two precise, backlash-free ball screw assembly provides high load capacity, high positioning accuracy and repeatability
Controlled by a brush-less high responsive, maintenance-free AC servomotor to drive the mobile traverse (crosshead) providing faster starts and stops, best control, and highest accuracy at a extremely low noise level
Additional two (2) guiding columns for increased lateral stiffness
Spindles (ball-screws) with flange double-nut, sealed and greased for long maintenance intervals
Spindle, flange double-nut and ball-screw shaft grinded pairwise for reduced pitch error
On-point, in-service lubrication
Spindle and column protection (are length over full travel long are protected by oil- and moisture-resistant), sealed bellows made from polyester fabric, coated with polyurethane inside and out side
Precision strain gauge load cell mounted on (moveable) crosshead optionally available Alignment Fixture mounted between crosshead and load cell with related alignment verification equipment
Digital movable crosshead encoder for high resolution, high accurate crosshead measurement and closed loop control
Adjustable end-stops in both (UP/DOWN) directions for the optimal protection of operator, test sample and machine
End-stops for maximum travel protection
Electrical cabinet with complete power supply and control module, relays etc. mounted on rear side of machine’s base
Durable structured coating (or paint)
Use of high quality components and assemblies of reputable companies
Bolts for machine lifting
Adjustable feet for leveling the testing machine
The machine is free-standing on shock absorbers, requiring no special foundations
LFM Electromechanical Floor Standing Machines 600 to 2500 kN
These rugged and durable 6-column Systems are designed for high capacity and high strength Materials Testing.
Typical application for this high force systems includes testing of metals and alloys, fasteners, bolts, plate steels, advanced composites and
Civil-, Aerospace-, Automotive-, Rails or Marine structures and components.
Key Features
Rigid 6-column machine frame with high stiffness providing superior axial and lateral stiffness and guarantees robust, durable and long-term operation
High machine stiffness and appropriate machine mass reduces shock at sample failure and provides smooth breaking
Two high resolution ball screws driven with pre-stressed ball nuts and low backlash reducing gear system provides high load capacity and high mechanical resolution
Spindle with flange double-nut, sealed and greased for long maintenance intervals
Spindle, flange double-nut and ball-screw shaft grinded pairwise for reduced pitch error
Controlled by a brush-less high responsive, maintenance-free and low noise AC servomotor to drive the mobile traverse guarantees positioning accuracy and repeatability
AC servomotor provides continuous high test speed up to nominal force for continuous operation
Ball Screws (spindles) protection over full travel through oil- and moisture-resistant, sealed bellows made from polyester fabric, coated with polyurethane inside and out side
Additional four (4) hardened and chromium plated guiding columns for increased lateral stiffness
Adjustable end-stops in both (UP/DOWN) directions for the best protection of operator, test sample and machine
End stops for maximum travel protection
One-point spindle lubrication
Precision strain gauge load cell mounted on (movable) crosshead
Alignment fixtures mounted between crosshead and load cell with related alignment verification equipment optionally available
Electrical cabinet with air-fan, complete power supply and control module, relays etc. mounted on rear side of machine’s base
Emergency stop direct at the machine
Durable structured coating (paint)
Use of high quality components and assemblies of reputable companies
Bolts for machine lifting
Adjustable feet for leveling the testing machine
The machine is free-standing on shock absorbers, requiring no special foundations
Ergonomic working height
