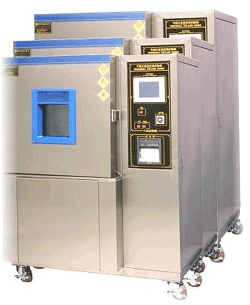

Temperature and Humidity Chamber







The TMJ-9712 Programmable Temperature & Humidity chamber is designed to test a wide range of materials including: Plastic, Rubber, Films, Packaging materials, Textiles,Leather, Adhesives, Medical products printing, synthetic glass, paints, ink, and others pigments industries,electronic parts and components and etc. in a different temperature and humidity conditions prior for subsequent physical or materials test.

Through advanced technology and quality engineering T-Machine has produced this Chamber which is accurate and easy to use. Powerful as a stand alone unit, the Chamber capability is enhanced by the functionality of connecting it direct to a standard recorder and obtain a comprehensive test report .The T-Machine 9712 Chamber can be used in laboratory and factory environments

Specifications

  • Inside Dimension (WxHxD) : 400x500x400mm

  • Outside Dimension (WxHxD) : 920x1020x920mm

  • Temperature range : -40oC ~ 150oC

  • Temperature uniformity : ±0.5oC

  • Temperature indicator : ±0.3oC

  • Humidity Range : 10-98% RH

  • Humidity Constancy: ±2.5% RH

  • Humidity Uniformity : ±3.0%RH

  • Heat up time : -20oC ~ 120oC within 34min

  • Pull down time : +20oC~-20oC within 40min
    Cooling System : Air Cooled

  • Refrigeration system : Hermetic compressor, cascade refrigerating system

  • Insulation : Rigid Polyurethane

  • Controller: Honeywell IPC100 Touch Screen controller. 999steps x 99 patterns x 999times. with 999 recalled programs capability

  • Safety devices : Breaker
    Control circuit overload & short
    circuit protection fuse
    Water low level warning
    Boil dry protector
    Overheat protector
    Thermal fuse
    Watchdog timer
    Emergency switch

  • Warning light: for fan motor over heat test end

  • Power Consumption : 220V single phase, 50Hz

  • Accessories : Please refer to quotation for details
