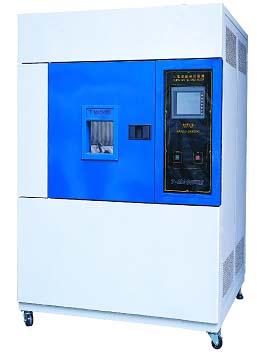

Xenon Weathermeter



The TMJ-9707 Xenon Arc long life weather meter is designed to test a wide range of materials in the fields of coating industries, automobile industries, construction industries,communications, textile industries, aviation, rubber and plastic industries and etc. in an accelerated test to find out the impact of sunbeam ray or wavelength equivalent to Sunlight for the lightproof and discoloration of materials.

Through advanced technology and quality engineering T-Machine has produced this Weather meter which is accurate and easy to use. Powerful as a stand alone unit, the fade meter capability is enhanced by the functionality of connecting it direct to a standard recorder and obtain a comprehensive test report .The T-Machine 9707

Xenon Arc Weather Meter can be used in laboratory and factory environments.
T-machine guarantees the resolution and accuracy of the machine by providing a traceable calibration certificate free of charge.
International test standards related as following :
CNS : A-3076, A-3158, Z-8015
JIS : A-1415, B-7752, D-0205, H-8685, K-5400, Z-8015
AATCC : 16, 111
ASTM : D-529, D-750, D-822, D-1419, D-2263
BS : 1006, 3900
FED. STD : 141
ISO-R : 878, 879



  • Lighting Source : 6500W*  Water cooling Xenon Arc
  • Lamp Lifespan : 2000Hrs
  • Testing Time : 60Hrs or higher
  • Testing Voltage : 190V ±15V
  • Testing Current : 35A±2A
  • Black Panel : Constantly 63±30C or 83±30C automatically
  • Specimen Drum : Max. 630 or 960mm Diameter
  • Drum Rotation Speed : 1 - 3 RPM
  • Temperature range : RT + 100C ~ 850C
  • Temperature uniformity : ±0.50C
  • Temperature resolution : ±0.10C
  • Rain Period : 60min, 12min spraying time or 120min, 18min spraying time
  • HumidityRange: Dry at 400C , RH is 40% ~85%
  • Power Consumption : 415V Three phase 50Hz

 * Other power source are available, please specify.
