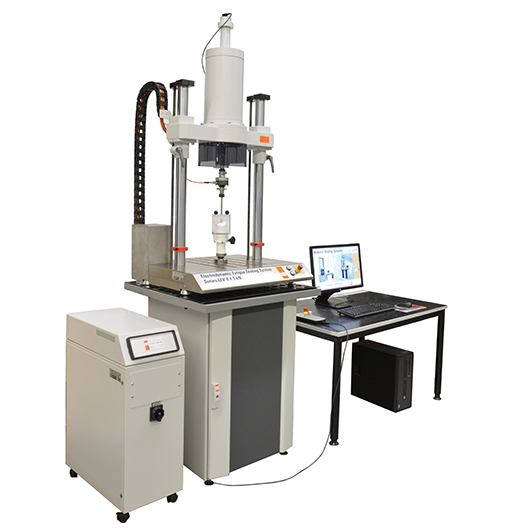

LFV-E Electrodynamic System

               Floor Model                         Table top Model                                     Dental Series

The LFV-E Test Systems are fluid-free, non-hydraulic system, with force capacities up to 12 kN for fatigue and durability testing.
Models with additional torque drive for tension-torsion application are also available.
These test systems can be used for constant load, monotonic, cyclic (dynamic) swelling or alternating loads in a closed loop control.
As measuring and control channel the axial piston stroke, force / stress or elongation / strain of sample is available. Further external control channels can be connected as physical or virtual (calculated), which are to be used either for monitoring (passive mode) or for operation of system (ative mode).

Electrodynamic Drive Technology
The state-of-the-art fluid-free, non-hydraulic ServoElectric drive mounted on the upper crosshead represents the latest high speed versatile and reliable fatigue rated drive technology, providing backlash-free motion with no fluid compressibility to compromise position accuracy.
The ideal solution for laboratories that desire a compact, space saving, clean and relatively low force unit that requires no environmental
consideration and nearly no maintenance.
Key Features

Very user-friendly and flexible test system for static and fatigue testing of a wide range of materials
Clean, non-hydraulic and quiet linear drive with integral bearings and long life time
High efficiency system compared to servohydraulic or pneumatic drives
Backlash-free and hysteresis-free motion with no fluid compressibility
Low noise vibration system
Load frame in high stiffness and is of appropriate mass
Integrated noise-free stroke transducer
Virtually maintenance free system with voice-coil drive with lower life cycle cost
Reduced moving parts
Easy to operate
Space saving compact design
